Horizontal openwell pumps

This single stage centrifugal pumps are ideally suitable for open wells. Where there is wide fluctuation in water level. It rest at the bottom of the well, so priming and suction problems do not arise. Prime mover is water filled fully rewindable and water cooled. Dynamically balanced rotor and statically balanced Impeller maintains uniform clearance for better efficiency and frictionless working.

	Domestic and villge water supply schemes
	Drip and sprinkler irrigation
	Industrial purposes, Hospitals, Gardens
	River and canal Litt irrigation
	Drinking water supply
	Small farms and Hotels

	Rotating parts are dynamically and statically blanced for uniform clearance
	Bi-axially oriented synthetic film insulated winding wires
	Core with low watt loss laminations
	Stainless steel body for longer life
	Low power consumption
	Cast iron impeller with high head as well as dicharge

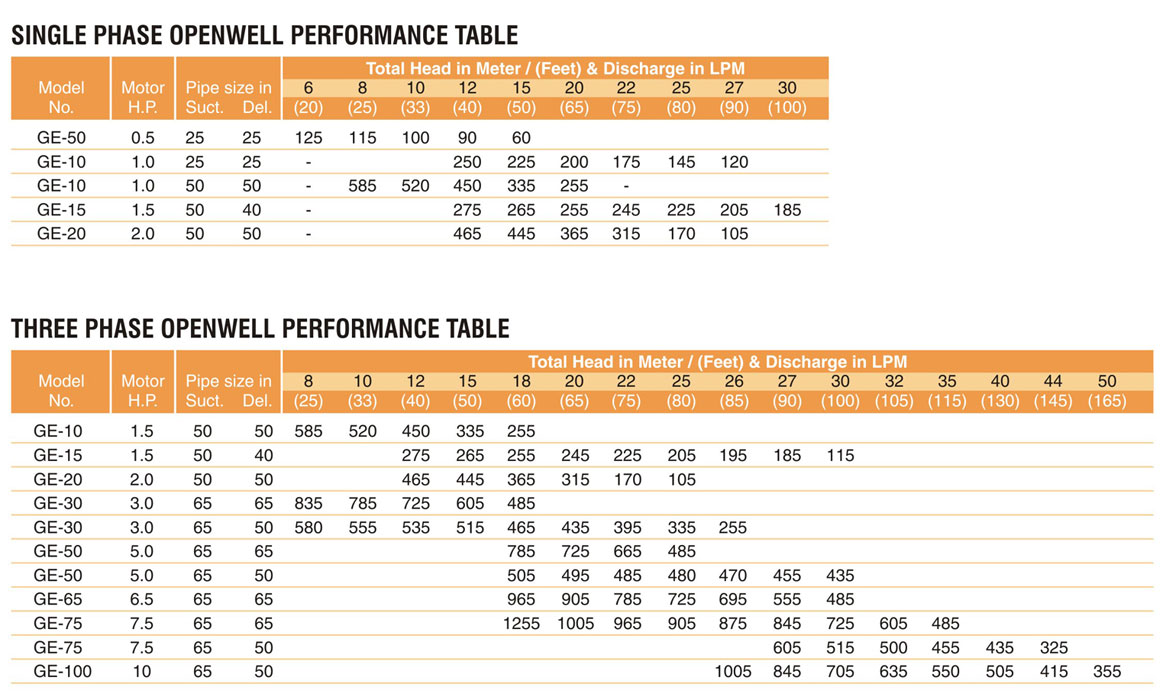

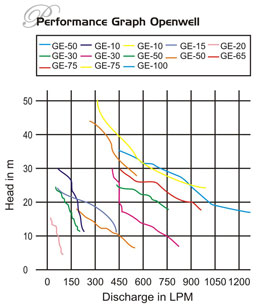

Perfomance Table - Openwell Pumps

Power (H.P.)	Single Phase 0.5/1/1.5/2
Versions	Three Phase 1/1.5/2/3/5/6.5/7.5/10
Speed (N)	2800 RPM
Discharge Range (LPM)	Single Phase 580 , Three Phase 1250
Head Range (Meters)	Single Phase 30 Meters (Max) , Three Phase 50 Meters (Max)
Liquid Temperature	33^o c (Max)
Ambient Templature	40^o c (Max)
