v-4 submersible pump

Drinking water supply, Domestic and coummunity water supply
Drip irrigation, sprinkler irrigation and gardening
Housing-Complexes, Hospitals, High-rise Buildings
Fire fighting, Landscaping, Fountains, service stations
De-watering of mines, cooling water circulations and booster applications

Corosion resistant stainless steel body
High electrical and mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thurst loads
Designed for high voltage fluctuations
High efficiency. Low power consumption

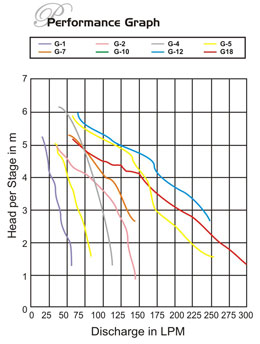

Perfomance Table - V4 ( Converted at 50 Hz )


Perticulars Materials of Construction
Motor Casing Stainless steel 304
Motor Bush Leaded Bronze
Motor Shaft Stainless steel 410
Thrust Bearing Stainless steel & Graphite Carbon/teflon
Housing / base cast Iron / Brass
Stamping CRNGO ( M-45 )
Screws / Studs Stainless steel 304
Impeller / Diffuser Noryl GNF2 Techno polymer
Stage Casing Noryl GNF2 Techno polymer
Pump Casing Stainless steel 304
Pump Shaft Stainless steel 410
Suction / Delivery Cast Iron / Brass

V4 Pump Sets (100 mm)
